Specifications
Diesel Forklift | 25BE-X
Features
As single-drive system without exposure of the traction motor, IP 54 motors, and 80V batteries are applied, the service areas of forklifts are expanded to the outdoor environment. Moreover, driving noise is reduced by 6.5dB thanks to the application of low-noise axle.
LiFePo4 lithium ion batteries have excellent 2hour quick charge and frequent charge properties, and 2-shift operation/day is possible without the replacement of batteries. In addition, as energy conversion efficiency is high and long-term follow-up management is not required, it is highly economical compared with traditional lead batteries.
The driver is able to check the operation conditions in real time on the multifunction digital cluster designed to ensure the visibility of major information during operation. In addition, various additional functions are embedded in the cluster for safe and convenient equipment management
Other outstanding advantages
With an optimized design, the Hyundai BE-X electric forklift series is engineered to minimize Total Cost of Ownership (TCO) for operators, delivering outstanding work efficiency and operator convenience:
- Energy efficiency improved by 8.2% compared to the 9F series, thanks to the use of a low-consumption drive unit and motor.
- Advanced ZAPI controller from Italy, offering high reliability with IP65-rated protection against water and dust.
- Fixed-mounted control lever on the armrest, requiring less effort from the operator.
- Optional suspended seat system with adjustable cushioning for enhanced comfort.
- Spacious step area design for easier entry and exit.
- Tiltable steering wheel up to 12.5 degrees, ergonomically adaptable to the operator’s body.
Maximized Safety

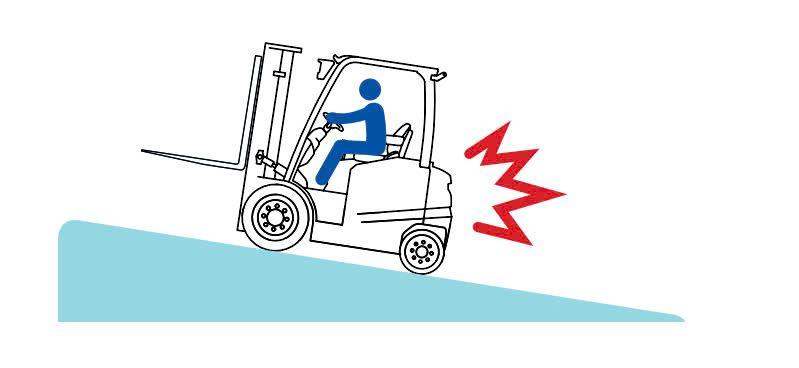

- Anti-Roll back systemThis system prevents the forklift from rolling rapidly down a slope when the accel pedal & brake pedal are not applied while also offering improved ramp start-up abilities.
- Operator presence sensing system (OPSS)The OPSS restricts driving, lifting in when the operator leaves the driver’s seat in order to prevent safety accidents.
- Limited travel speed when driving with elevated load (Option)The travel speed is limited to 3km/h when the fork is lifted to a height of 500mm or it is above the free mast elevation height, in order to ensure the cargo doesn’t fall off and the forklift doesn’t get overturned.
- Speed limitMaximum travel speed of the equipment may be set to meet the safety speed of the site through a multifunctional monitor, and safety accidents caused by overspeed may be prevented. Even when maximum speed is limited, gradeability and lifting performance are maintained at top levels
- Front/Rear camerasThe wireless front/rear camera system supplies the twochannel monitor with information on the front/rear. A front camera is installed on the lateral side of the fork, helping in the safe identification of the position of pallets during high-rack operation.
- Rear Grip Bar & Horn (Option)The rear steering wheel with horn embedded allows the driver to keep a stable, convenient posture during rear driving and operate the horn rapidly without changing the driving posture in case of an emergency situation.
- LED work lamps and safety warning lampBright and long-life LED lamps are applied to the front/rear work lamps and direction indicators. Moreover, beacon lamp, blue spots, and red zone lamps are optional for the notification of motion of the forklift to the surrounding workers.
Easy maintenance and servicing
- The user-friendly design allows for quick and easy battery charging, removal, and replacement, minimizing downtime.
- A sealed Micro Control Valve (MCV) switch is applied, ensuring the reliability of the hydraulic control system by protecting it from outdoor water and dust intrusion.
- Video
